Pivoting Top For Heavy Duty Steel Shores

The Pivoting Top is intended to secure the Ellis Heavy Duty Steel Shore to the object being supported and will pivot up to 45 degrees.

Specifications

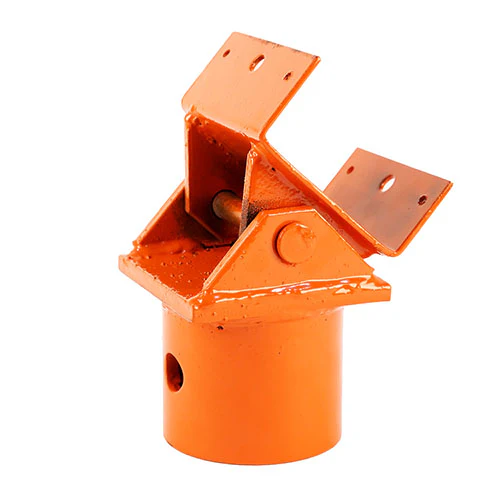

The Ellis Pivoting Top for Heavy Duty Steel Shores is perfect for supporting loads that are at an angle. Three options are available; flat plate, 4x4 A, and 4x4 B. The Flat Plate comes with 4 mounting holes and a 3/8" thickness for maximum support. The will all pivot a maximum of 45 degrees in 2 directions. For more detail see product drawing below for each.

Specifications

FOR USE WITH HEAVY DUTY STEEL SHORES ONLY.

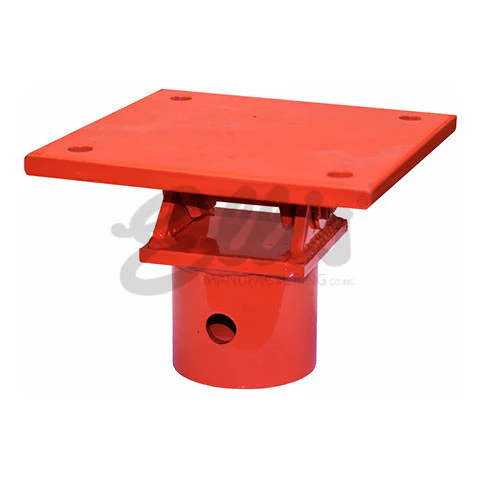

STLHD-PCFP

  • Plate Thickness: 1/2"
  • Plate size: 8" X 8"
  • Plate Mounting Holes: (4) 9/16" Diameter Holes.
  • Range of Pivot: 45 degrees


*Adding a pivoting top to a Steel Shore can significantly reduce its Safe Load Rating.  Consult with a Professional Engineer for proper use.

Product Drawing

STLHD-PCFP
STLHD-PCA44
STLHD-PCB44

The Pivoting Top is intended to secure the Ellis Heavy Duty Steel Shore to the object being supported and will pivot up to 45 degrees.

Specifications

The Ellis Pivoting Top for Heavy Duty Steel Shores is perfect for supporting loads that are at an angle. Three options are available; flat plate, 4x4 A, and 4x4 B. The Flat Plate comes with 4 mounting holes and a 3/8" thickness for maximum support. The will all pivot a maximum of 45 degrees in 2 directions. For more detail see product drawing below for each.

Specifications

FOR USE WITH HEAVY DUTY STEEL SHORES ONLY.

STLHD-PCFP

  • Plate Thickness: 1/2"
  • Plate size: 8" X 8"
  • Plate Mounting Holes: (4) 9/16" Diameter Holes.
  • Range of Pivot: 45 degrees


*Adding a pivoting top to a Steel Shore can significantly reduce its Safe Load Rating.  Consult with a Professional Engineer for proper use.

Product Drawing

STLHD-PCFP
STLHD-PCA44
STLHD-PCB44
