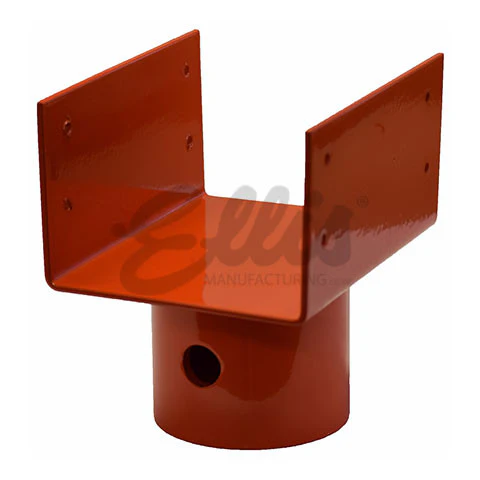

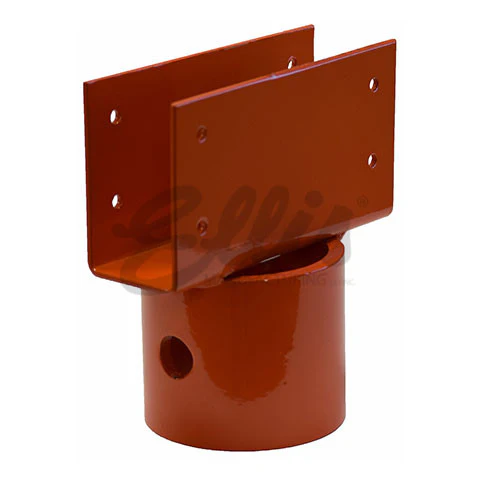

The Ellis U-Head Top or shore saddle for Heavy Duty Steel Shores is designed to fit on all Heavy Duty Shores and secure to a horizontal 2x4, 2x6, 2x8, 4x4, 4x6, 4x8, 6x6 etc. lumber beam and joists.  Joist stabilization.

Specifications

The Ellis U-Head Top for Heavy Duty Steel Shores is compatible with all Heavy Duty Steel Shores. See below for specifications on all U-Head Tops.

---

Specifications

** FOR USE WITH HEAVY DUTY STEEL SHORES ONLY.

Single Joist Holder | STLHD-JH

Use: Accepts one 2x4, 2x6, 2x8, 2x12 Joists

Material: 3/16" Steel

Width of U-Head: 1-5/8" (Inside)

Mounting Holes: (8) 3/16" Diameter Holes.

Double Joist Holder | STLHD-JHD

Use: Accepts two 2x4, 2x6, 2x8 Joists

Material: 3/16" Steel

Width of U-Head: 3-1/8" (Inside)

Mounting Holes: (4) 3/16" Diameter Holes.

Triple Joist Holder | STLHD-JHT

Use: Accepts three 2x4, 2x6, 2x8 Joists

Material: 3/16" Steel

Width of U-Head: 4-5/8" (Inside)

Mounting Holes: (4) 3/16" Diameter Holes.

Quad Joist Holder | STLHD-JHQ

Use: Accepts four 2x4, 2x6, 2x8 Joists

Material: 3/16" Steel

Width of U-Head: 6-1/8" (Inside)

Mounting Holes: (4) 3/16" Diameter Holes.

4x4 Beam Holder | STLHD-4x4

Use: Accepts 4x4 beam

Material: 3/16" Steel

Width of U-Head: 3-3/4" (Inside)

Mounting Holes: (4) 3/16" Diameter Holes.

6x6 Beam Holder | STLHD-6x6

Use: Accepts 6x6 beam

Material: 3/16" Steel

Width of U-Head: 5-3/4" (Inside)

Mounting Holes: (4) 3/16" Diameter Holes.
