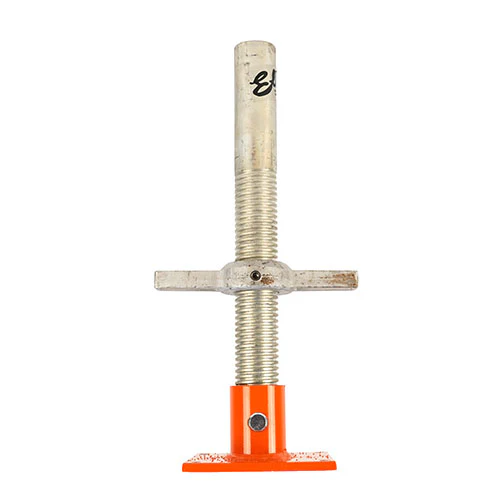

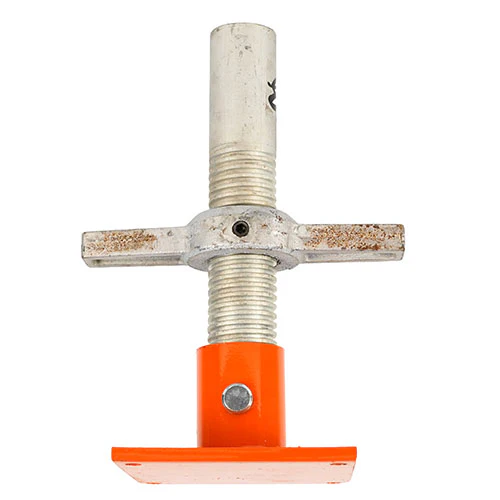

10K Leg Shore Frame Leveling Screw Jack
The Ellis Leveling Screw Jack for 10K leg shore frames come with a forged wing nut, Acme screw, and 3/8" steel base plate for maximum strength and durability. Available sizes of screw are 12", 18", 22", and 36".
Specifications
The Ellis Leveling Screw Jack for 10K leg shore frames come with a forged wing nut, Acme screw, and 3/8" steel base plate for maximum strength and durability. Available sizes of screw are 12", 18", 22", and 36".
Screw Sizes - The S-12 has a total height of 12", 8" with threads 4" solid pipe. The S-18 has a total height of 18", 12" with threads 6" solid pipe. The S-22 has a total height of 22", 16" with threads 6" solid pipe. The S-36 has a total height of 36", 30" with threads 6" solid pipe.
Wing Nut - Forged for durability, galvanized, 8.75" Long. Lockable with safety lock set screw (included) for permanent use.
Base Plate - 3/8"x6" x6", 4- 3/8" Holes (welded to 2" Sched. 40 Pipe). Custom sizes available
Acme Screw - 1-7/8" Dia.
The Ellis Leveling Screw Jack for 10K leg shore frames come with a forged wing nut, Acme screw, and 3/8" steel base plate for maximum strength and durability. Available sizes of screw are 12", 18", 22", and 36".
Specifications
The Ellis Leveling Screw Jack for 10K leg shore frames come with a forged wing nut, Acme screw, and 3/8" steel base plate for maximum strength and durability. Available sizes of screw are 12", 18", 22", and 36".
Screw Sizes - The S-12 has a total height of 12", 8" with threads 4" solid pipe. The S-18 has a total height of 18", 12" with threads 6" solid pipe. The S-22 has a total height of 22", 16" with threads 6" solid pipe. The S-36 has a total height of 36", 30" with threads 6" solid pipe.
Wing Nut - Forged for durability, galvanized, 8.75" Long. Lockable with safety lock set screw (included) for permanent use.
Base Plate - 3/8"x6" x6", 4- 3/8" Holes (welded to 2" Sched. 40 Pipe). Custom sizes available
Acme Screw - 1-7/8" Dia.
Original: $155.12
-70%$155.12
$46.54Description
The Ellis Leveling Screw Jack for 10K leg shore frames come with a forged wing nut, Acme screw, and 3/8" steel base plate for maximum strength and durability. Available sizes of screw are 12", 18", 22", and 36".
Specifications
The Ellis Leveling Screw Jack for 10K leg shore frames come with a forged wing nut, Acme screw, and 3/8" steel base plate for maximum strength and durability. Available sizes of screw are 12", 18", 22", and 36".
Screw Sizes - The S-12 has a total height of 12", 8" with threads 4" solid pipe. The S-18 has a total height of 18", 12" with threads 6" solid pipe. The S-22 has a total height of 22", 16" with threads 6" solid pipe. The S-36 has a total height of 36", 30" with threads 6" solid pipe.
Wing Nut - Forged for durability, galvanized, 8.75" Long. Lockable with safety lock set screw (included) for permanent use.
Base Plate - 3/8"x6" x6", 4- 3/8" Holes (welded to 2" Sched. 40 Pipe). Custom sizes available
Acme Screw - 1-7/8" Dia.
